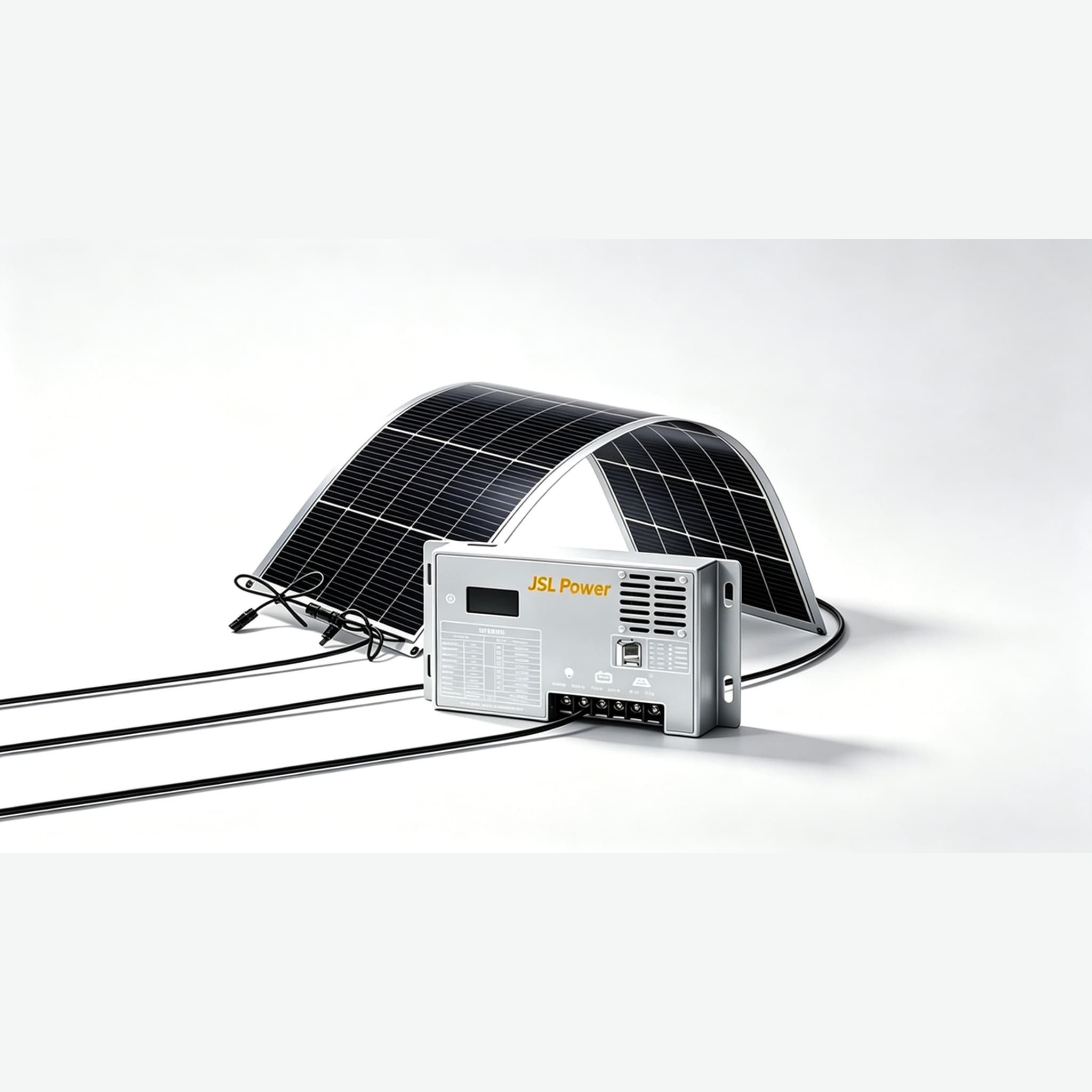

200W JSL Power ETFE Auto Tracking Solar Panel Off-Grid Outdoor Camping

Model : JSL-Odfg-200W

Short Description:

Large-capacity ETFE panel, bearing high electrical load in remote outdoor work scenarios.

Selling Points:

Supply power for heavy field equipment with reliable large load outdoor equipment power.

Drive high-power camping appliances such as portable air conditioners and induction cookers off-grid.

Optimized circuit safely transmits large current without overheating outdoors.

Essential equipment for remote construction teams, rescue teams and heavy-load outdoor explorers.

Rigid structure resists strong wind and keeps the panel in stable working posture.

Deliver high-amperage power to large off-grid inverters for continuous operation.

Auto-Tracking Solar Panel Specification
Parameter Name Parameter Value
Standard Output Power 200W (-5%, +10%)
Cell Type Monocrystalline
Standard Operating Voltage 22V (-5%, +10%)
Standard Operating Current 9.08A (-5%, +10%)
Short-Circuit Current (Isc) 9.52A (-5%, +10%)
Cell Conversion Efficiency
Operating Temperature Range -20℃ ~ +60℃
Expanded Dimensions 1015×1130×750 mm
Storage Dimensions Small bag 250×170×110
mm Large bag 650×600×150 mm
Storage Dimensions Small bag 250×170×110
Net Weight 9kg

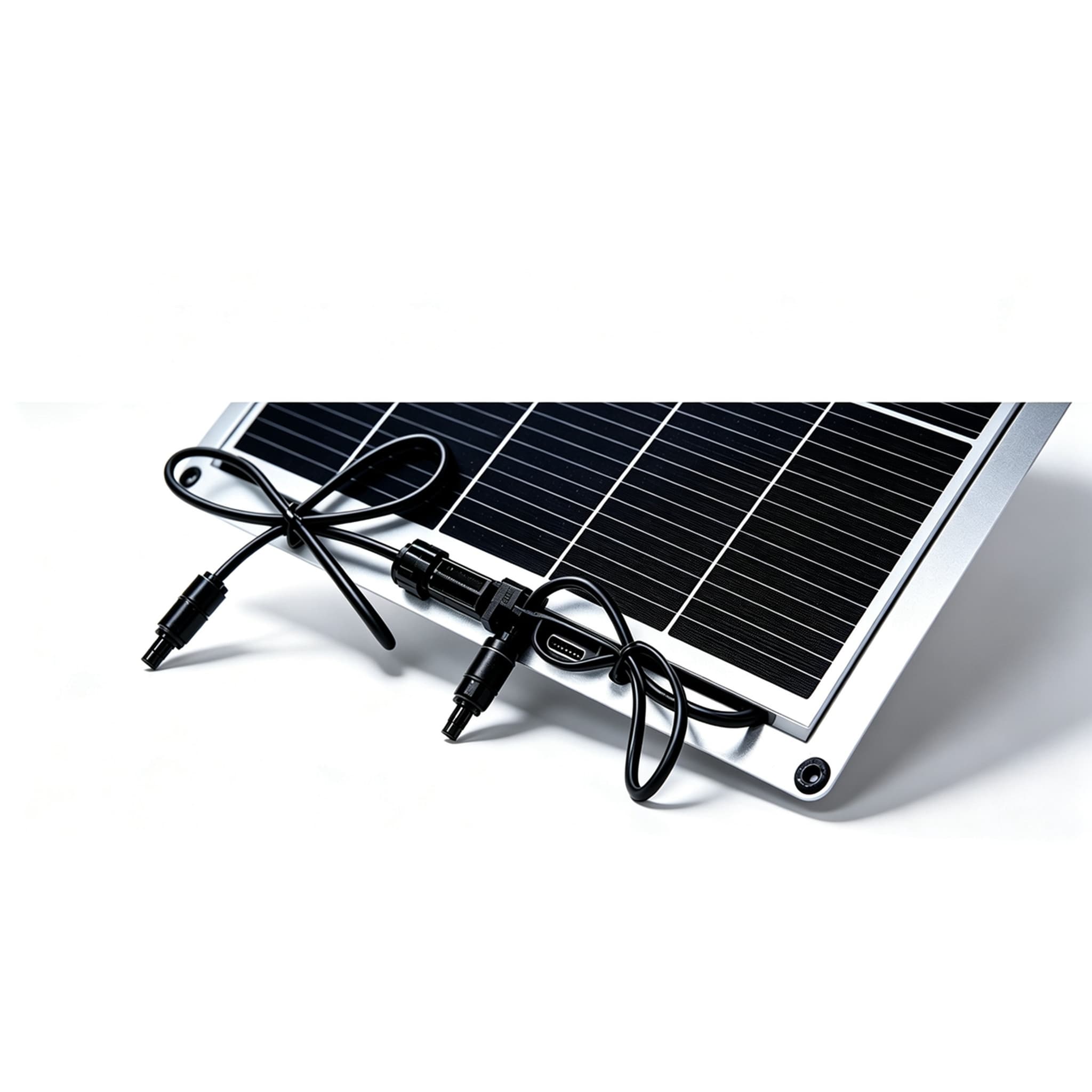

Optional Output Connectors Anderson / XT60-F / DC7909 /DC5521
Surface Film: ETFE (Standard), PET available as option for budget orders
Reminder: PET version features inferior weather resistance and bending durability compared to ETFE.
Built-in auto light tracking structure to improve solar energy harvesting efficiency
